Kit Manufacturer Resources

Everything you need to print our PWR Supporter kit

Artwork files, color specifications, type and logo rules for the PWR Racing community supporter kit. Download what you need, build the proof, send it back for approval. The race program kit is a later run.

Reference

Current Jakroo Skinsuit (Echelon Pro SS Race Suit)

The skinsuit in production. Black base with a tonal pinstripe, black side and seat panels, Hot Pink lettering throughout. Reproduce these placements exactly.

Garment reference: Jakroo Echelon Pro SS Race Suit

6 views · tap any photo for a larger version

Skinsuit front, PWR wordmark across the chest
Front chest — PWR across the zip, both halves aligned
Original PNG · 1.6 MB
Skinsuit back, PASSION WORK RESPECT stacked
Back panel — PASSION / WORK / RESPECT stacked, centered
Original PNG · 1.8 MB
Skinsuit rear, PWR on the seat panel and quote band
Rear — PWR on the seat panel, quote band above the waist
Original PNG · 1.8 MB
Full skinsuit front view
Full suit — PWR on sleeve and thigh, CLUB on the hip
Original PNG · 1.7 MB
Skinsuit side detail
Side — PASSION WORK RESPECT set vertically beside the zip
Original PNG · 1.6 MB
Skinsuit front zip and chest placement
Zip line — chest wordmark sits above the sponsor band
Original PNG · 1.4 MB

Men's suit on the road

6 views · tap any photo for a larger version

Men's suit side view, PWR on chest and thigh
Chest and thigh — PWR at full scale, CLUB on the side above hip
Original JPG · 8.7 MB
Men's suit back, PASSION WORK RESPECT stacked
Back panel — PASSION / WORK / RESPECT, PWR on both seat panels
Original JPG · 8.3 MB
Men's suit front, PWR across the chest
Front — chest wordmark and PWR on both sleeves
Original JPG · 14 MB
Men's suit side profile
Side profile — sleeve, on the side above hip and thigh placements in line
Original JPG · 4.3 MB
Men's suit rear three-quarter
Rear three-quarter — back panel reading under the shoulders
Original JPG · 6.4 MB
Men's suit sleeve and hip detail
Sleeve and hip — PWR on the upper arm, CLUB set vertically
Original JPG · 10 MB

Jersey

Black base, Hot Pink lettering throughout. Five flat production mocks — front, back, both sides, and one with the arm forward for the inner sleeve. These are the authority for every jersey placement below.

Garment reference: Jakroo custom product — jersey

5 views · tap any mock for a larger version

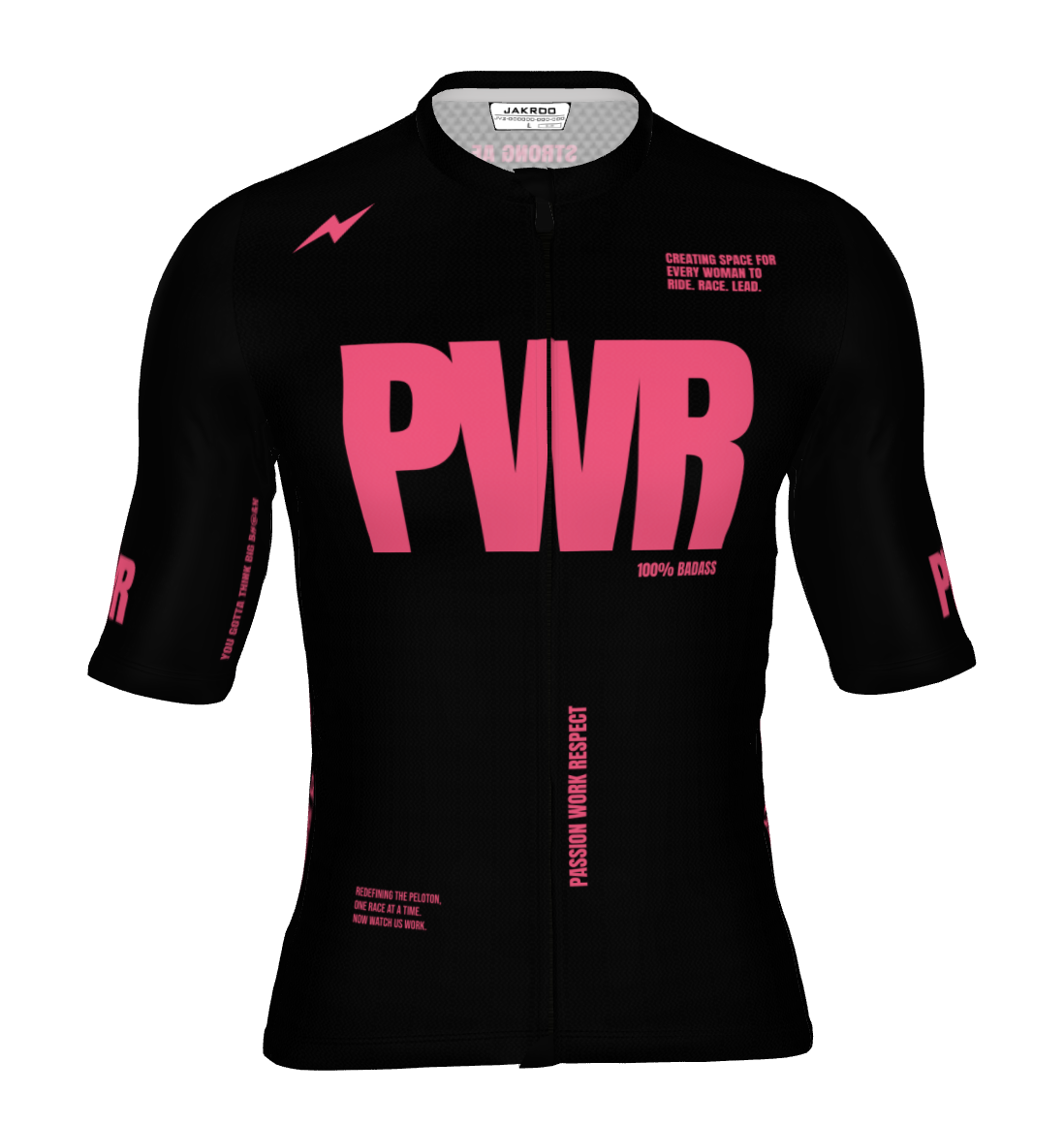

Jersey front mock: lightning bolt at left chest, large PWR across the center, vertical PASSION WORK RESPECT beside the zip
Front — bolt at the left chest, PWR across the center, PASSION WORK RESPECT vertical along the zip
Original PNG · 612 KB

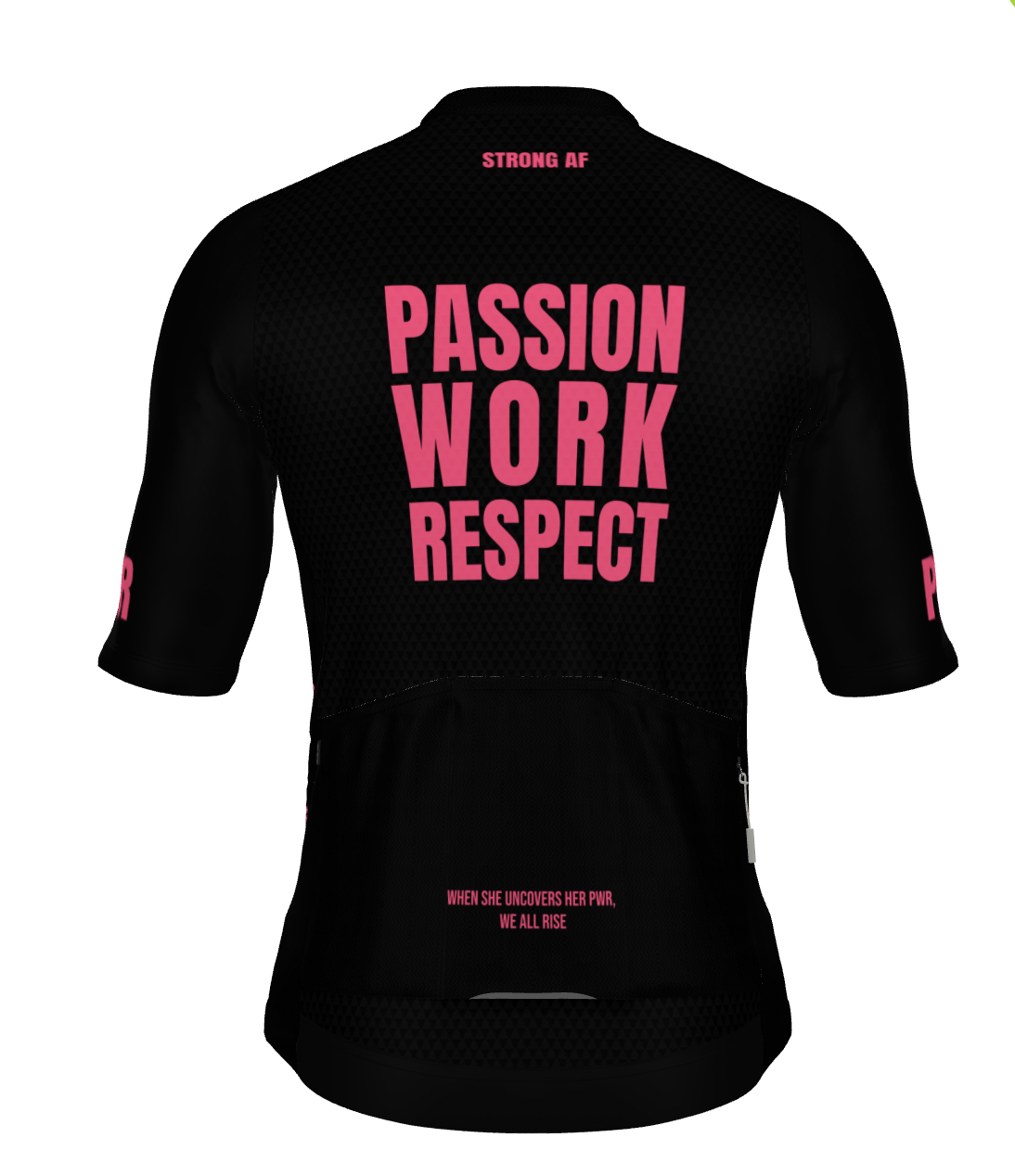

Jersey back mock: STRONG AF under the collar, stacked PASSION WORK RESPECT on the back panel, quote on the middle pocket
Back — STRONG AF at the yoke, PASSION / WORK / RESPECT on the back panel, quote on the middle pocket
Original PNG · 628 KB

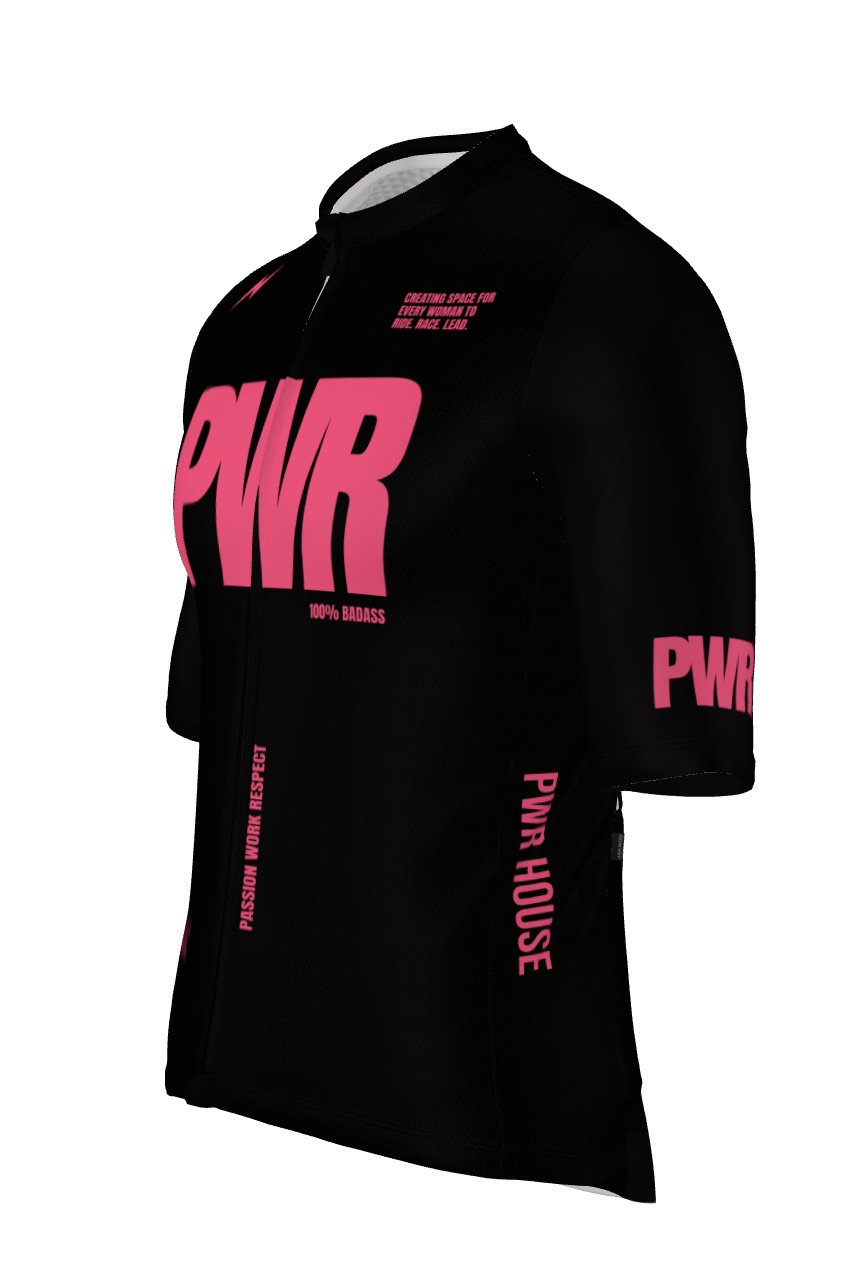

Jersey left three-quarter view showing PWR HOUSE set vertically on the side panel below the sleeve
Left side — PWR HOUSE set vertically down the side panel, below the sleeve
Original PNG · 468 KB

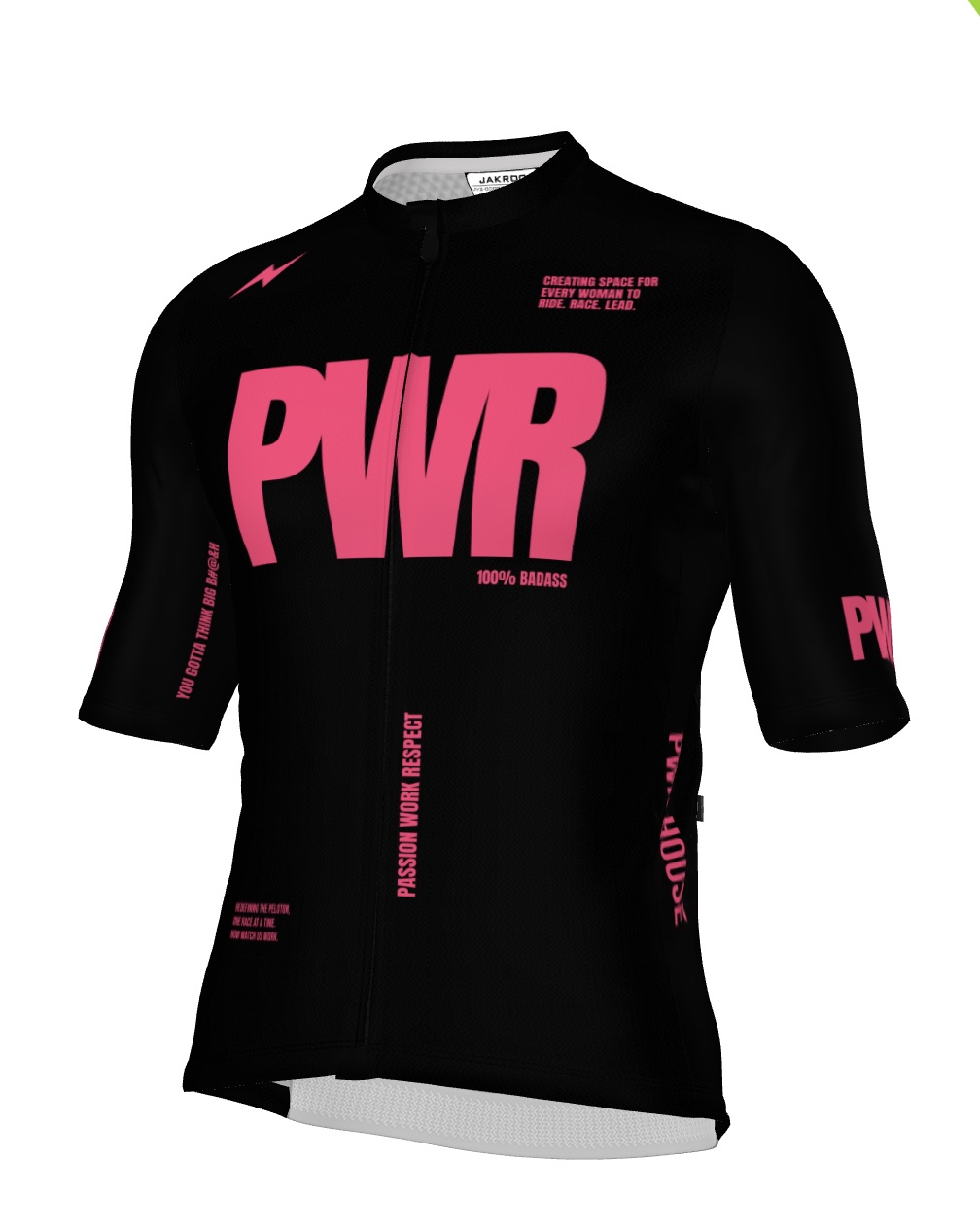

Jersey right three-quarter view showing PWR HOUSE set vertically on the opposite side panel
Right side — PWR HOUSE again, matching placement on the opposite panel
Original PNG · 520 KB

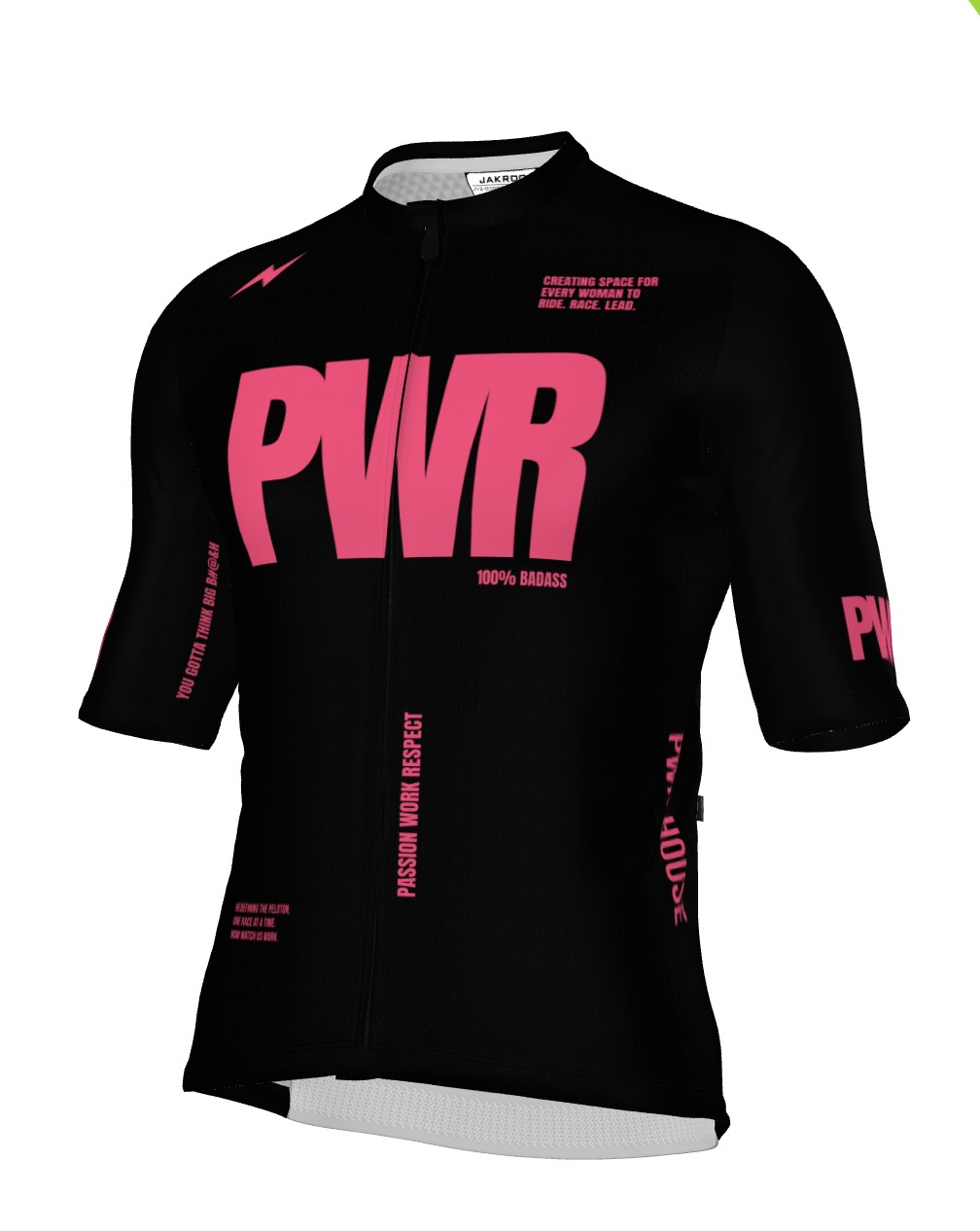

Jersey three-quarter view with the arm forward, showing YOU GOTTA THINK BIG B#@&H running up the inner sleeve
Arm forward — YOU GOTTA THINK BIG B#@&H on the inner sleeve, the clearest view of that placement
Original PNG · 600 KB
Artwork

Artwork files

Every mark on the suit, outlined and ready to place. Illustrator .ai plus .svg for each. Hot Pink #FF0099 on a transparent ground — do not re-typeset these.

Complete artwork pack
All 16 marks · .ai and .svg · ZIP archive · 18 MB
Download all

Community supporter kit

Build this kit first. These six marks are the full set for the supporter suit — nothing else appears on the garment.

PWR wordmark
PWR
Chest, sleeve, thigh, seat panel
.ai .svg
CLUB wordmark
CLUB
On Side, Above Hip, set diagonally
.ai .svg
Passion Work Respect, three lines justified to equal width
Passion Work Respect — stacked center
Back panel
Three lines justified to equal width — WORK set larger to fill its line. Square artwork.
.ai .svg
Passion Work Respect, three lines of uniform size centered on one axis
Passion Work Respect — stacked left
Front panel, bottom left, above bib line
Uniform type size, lines centered on one axis — ragged edges. Wider than tall.
.ai .svg
Passion Work Respect set on a single horizontal line
Passion Work Respect — horizontal
Placed along zipper line, vertically
.ai .svg
When she uncovers her PWR
When she uncovers her PWR
Quote on middle back pocket
.ai .svg

Jersey

Seven marks unique to the jersey. It also carries four from the supporter kit above — PWR, the justified PASSION / WORK / RESPECT stack on the back panel, PASSION WORK RESPECT horizontal along the zip, and the community quote on the middle back pocket. Placements below are read from the front and back mocks; the mocks are the authority.

Lightning bolt mark
Lightning bolt
Front, left chest above the zip — per the front mock
.ai .svg
Creating space for every woman to ride, race, lead
Creating space for every woman to ride. race. lead.
Front, right chest, three lines — per the front mock
.ai .svg
100% BADASS
100% Badass
Front, directly under the PWR chest mark — per the front mock
.ai .svg
You gotta think big B#@&H
You gotta think big B#@&H
Inner left sleeve, set vertically — per the arm-forward mock
.ai .svg
Redefining the peloton, one race at a time. Now watch us work.
Redefining the peloton
Front, bottom left, three lines — per the front mock
.ai .svg
STRONG AF
Strong AF
Back yoke under the collar, and inside the front collar — per both mocks
.ai .svg
PWR HOUSE
PWR House
Side panels under the armpits, set vertically — both sides, per the side mocks
.ai .svg

Race program

Held for a later production run. Do not place these on the supporter kit.

RACING wordmark
RACING
Race-program pieces only. Hip set, diagonally
.ai .svg
RACE wordmark
RACE
Race-program pieces only. Hip set, diagonally
.ai .svg
Type

Fonts

One face on the garment. Outline all type before sending artwork back.

Anton

Every piece of lettering on the suit is Anton — chest wordmark, back panel, sleeves, thigh, hip and the quote band. Always uppercase, never below 18pt. Free from Google Fonts.

Get Anton
Use the supplied vectors

You should not need to set type at all. Every mark on the suit is available as vector artwork above — place those files rather than re-typesetting in Anton, which will not match the existing letterfit.

Color

Brand Colors

Never more than three colors in one layout. Match to the CMYK build below, not to the screen hex.

Primary

Hot Pink and Dark Navy carry the brand. Every garment leads with these two.

Hot Pink
HEX #FF0099
RGB 255 / 0 / 153
CMYK 0 / 100 / 40 / 0
Dark Navy
HEX #263855
RGB 38 / 56 / 85
CMYK 49 / 32 / 0 / 67

Secondary

Supporting colors. None of these appear on the supporter suit — they are for campaign and lifestyle material.

Soft Pink
HEX #FF97D5
RGB 255 / 151 / 213
CMYK 0 / 41 / 16 / 0
Lifestyle material only
Electric Blue
HEX #1800DD
RGB 24 / 0 / 221
CMYK 89 / 100 / 0 / 13
Accent only — use sparingly
Black
HEX #000000
RGB 0 / 0 / 0
CMYK 0 / 0 / 0 / 100
Side and seat panels, dark grounds
White
HEX #FFFFFF
RGB 255 / 255 / 255
CMYK 0 / 0 / 0 / 0
Breathing room
Logo

Marks and lockups

Available for team store use.
